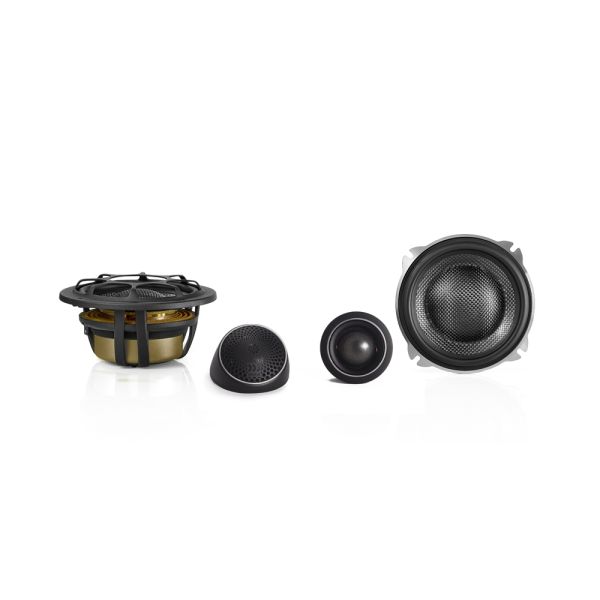

Morel Elate Carbon 5.25" (130 mm) 2-Way Component Speaker Set - Active
Special order
SKU
MOR ELAT CAR 52A
Views: 27
£1,799.00 £1,499.17

Clearpay is credit. T&Cs & late fees apply clearpay.co.uk/terms.
Experience ultimate performance with the Morel Elate Carbon 5.25 2-Way Component Speaker Set. Small yet powerful, it offers a smooth, flat frequency response with its Acuflex coated silk dome. The discreet tweeter and carbon fibre/Rohacell sandwich cones ensure ultra-low distortion, while the large voice coils handle high power levels. Perfect for any space, these speakers will exceed your expectations!
Elate Carbon 2-Way Speaker Spec
| MODEL | SIZE & CONFIGURATION | POWER HANDLING (WRMS) / PEAK POWER (W) | SENSITIVITY (DB) | FREQUENCY RESPONSE (HZ) |
|---|---|---|---|---|
| Elate Carbon 52 | 5¼” 2-way | 160 / 1000 | 85 | 40-25000 |
| Elate Carbon 52A | 5¼” 2-way Active | 160 / 1000 | 85 | 40-25000 |
| Elate Carbon 62 | 6½" 2-way | 180 / 1000 | 87 | 30-25000 |
| Elate Carbon 62A | 6½" 2-way Active | 180 / 1000 | 87 | 30-25000 |

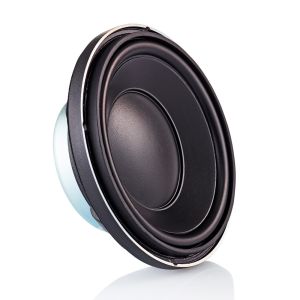

Elate Carbon 5.25" Speaker Spec
| Model | ELATE CARBON MW5 |
|---|---|
| Nominal Impendance (ohm) 4 | 4 |
| Power Handling Wrms | 160 |
| Max. Trans. Pwr Handling Wrms | 1000 |
| Sensitivity (2.83 V/1M) dB | 85 |
| Frequency response Hz | 40 - 5000 |
| Resonant Freq. Fs Hz | 64.4 |
| Voice Coil Diameter mm (inch) | 75 (3) |
| Voice Coil Height mm (inch) | 14.50 (0.57) |
| Voice Coil Type/Former | Titanium |
| Voice Coil Wire | HexatechTM Aluminium |
| DC Resistance (ohm) | 3.6 |
| Voice Coil Induct. @1 kHz (mH) | 0.615 |
| Magnet System | Double magnet rear vented |
| HE-Magnetic Gap Height mm (inch) | 5 (0.20) |
| B-Flux Density (T) | 0.66 |
| BL Product/BXL | 5.15 |
| Max. Linear Ex./Xmax mm (inch) | ±4.75mm (0.18) |
| Suspension Compliance CMS - mm/N | 0.35 |
| Electrical Q Factor QES | 0.63 |
| QTS | 0.56 |
| QMS | 4.15 |
| Mech. Resistance RMS- N . S / M | 1.32 |
| Moving Mass MMS - gr/ounce | 18 (0.63) |
| Equiv. Can Air Load VAS - L (cu.ft3) | 4.5 (0.6) |
| Effective Piston Area SD sq.cm (sq.inch) | 90 (13.95) |
| Cone Type | One-piece formed |
| Cone Material | DPC |
| Unit Diameter mm(inch) | 135 (5.25) |
| Mounting Depth mm (inch) | 60 (2.36) |
| Mounting Cutout | 120 (4.72) |
| Net Wight Kg (lb) | 1.05 (2.31) |
| Speaker Size (in) | 5.25" |
|---|---|
| Style | Component |
| RMS Power (W) | 160 |
| Sensitivity (dB @ 1W/1m) | 85 |
| Frequency Response (Hz) | 40-25k |
| Mounting Hole Diameter (cm) | 12 |
| Mounting Depth (cm) | 6 |
| Single Or Pair | Pair |
| Grills | Included |
| Brand | Morel |
| EAN | 14729010592220 |
| Box Quantity | No |
