Every aspect of the Warhorse was tortured mercilessly in our labs to ensure extreme performance and reliability. It was engineered completely in-house by KICKER Research and Development for ultra-high SPL applications.

Fortified to Go Hard
From the board layout to the rails, to the Tiffany-style RCA connectors, everything about these amps will make a bass head smile from ear to ear. This full-bridge, one-Ohm stable amplifier features dual 1/0 power and ground connections, 4 AWG speaker terminals, dual 8 AWG remote terminals, and quad microprocessor-controlled fans for fast but quiet cooling when you need it.

Engage Competition Mode!
Engage Competition mode to set the input sensitivity to 4 volts, locking the gain potentiometer out for easy gain-matching across multiple amps, amongst other slick features.
What is Competition Mode?

Real-Time Status Tools
Warhorse Amps come with a heavy-duty, magnetic-mount diagnostic tool, displaying battery voltage, thermal protection status, power-supply protection, and speaker current overload, all in real time! A premium remote bass-level control, also with magnetic mount, is included with the mono amp as well.

Compatible!
It’s equipped with the KICKER FIT+™ (Fail-safe Integration Technology) differential inputs and a 125mV-40V RCA input range, so the amps are fully compatible with most all factory or aftermarket source units. It’s also start/stop compliant.

Not your Average Amp!

Features extreme reliability under intense bass power and overall use
Engineered completely in-house by KICKER R&D
Full-bridge Class-D design
Quad micro-controller-regulated cooling fans
Capable of daisy-chaining remote power across multiple amps
Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps
Includes premium remote bass-level control with a magnetic mount – 19.75 feet (6m) RJ45 cable
Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status – 19.75 feet (6m) RJ45 cable
Fully compatible with most factory or aftermarket source units (with FIT+™ differential inputs)

Spec:

3600W @ 1 ohm
2500W @ 2 ohm
1400W @ 4 ohm
Dynamic power: 5000W

Dimensions (cm):

Heigh: 6.5
Width: 23.2
Length: 39.1

See the product specifications tab for more information.

More Information
Output Channels	1
Voltage (V)	12
Class	D
Features	One Ohm Stable KickEQ Bass Boost FIT+ Technology
Fuse Rating (A)	2 x 200A
Cable Gauge (AWG)	0
Amp Turn-On	DC Offset 12V
Frequency Response (Hz)	10-200
Signal-to-Noise Ratio (dB)	>90
Filter	Low-Pass
Input Channels	2
Input Type	High Level Low Level
Input Sensitivity Low Level	125mV-5V
Input Sensitivity High Level	1V-40V
Height (cm)	6.5
Width (cm)	39.1
Depth (cm)	23.2
Colour	Black
Brand	Kicker Audio
EAN	713034013105
Box Quantity	2

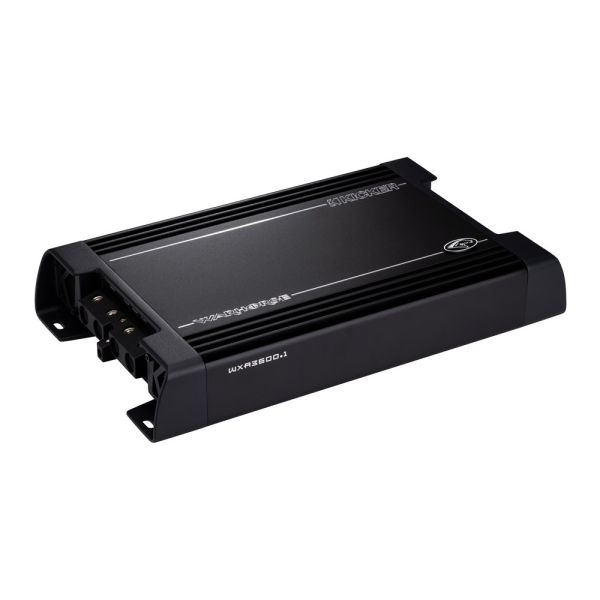

Warhorse WXA3600.1 Mono Amplifier
