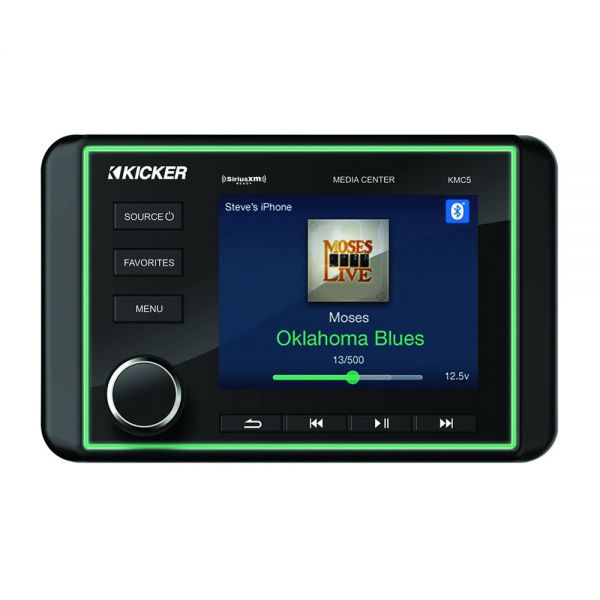

Kicker Marine Source Unit - 6 Channel, Dual Zone, NMEA Compatibility + AV Input
Two Zones with 6 Amplified channels of power
Add amazing sound to your boat with the Kicker KMC5 marine digital media receiver. The KMC5 provides six channels of power across two zones making this one of the most versatile Marine receivers available. There is a full-colour 9cm display providing control over the two zones of audio. The receiver has video capability that you can connect to an onboard camera for assistance when mooring, engine bay safety or ski/wakeboard safety. The big and clearly marked buttons are easy to see and easy to operate even when wearing gloves.
Camera Input
The KMC5 features a versatile camera/video input designed for a variety of purposes. It's commonly used for docking, water sports and engine rooms.
Music Sources
You can stream music from your smartphone, plug a music player into the rear aux input, or a thumb drive into the rear USB port. You can tune into your favorite local radio stations using the AM/FM tuner and if you are planning to add an amplifier to the system then you will appreciate the eight rear-mounted preamp outputs and a customizable EQ with 5 presets.
NMEA
The Kicker KMC5 is NMEA 2000 certified product and is compatible with a range of the world’s leading Multi-Function Displays for on-screen audio control. When pairing the KMC5 with a supported MFD (chart plotter) or fish finder, you bring your music to the big screen, allowing you to keep an eye on the charts or the fish while skipping tracks or adjusting the volume at the same time.
This marine digital media receiver will not play CDs.
- Marine digital media receiver
- 9cm/3.5" full color LCD display
- AM/FM reception
- Built-in 6-channel amp with 4 and 2-ohm stability
- 25 watts RMS (50 watts peak) x 6 (4 ohms)
- 40 watts RMS x 6 (2 ohms)
- Dual-zone capability
- Pre-sets for AM/ FM
- Built-in Bluetooth® for music streaming
- IPX66-rated watertight face
- Day/night mode
- Customizable 6-band EQ with five presets
- Inputs: rear USB input, rear RCA input, camera input
- Outputs: dual-zone 8-channel preamp outputs (4 volts)
- NMEA port
- Cutout opening: 7.6cm/3.0" diameter x 17cm/6.68" deep
- IP Rating: IP66 & IP67
- Kicker 46KMC5 owner's manual
- Marine digital media receiver (20A fuse)
- Main harness
- Zone 2 harness
- RGB harness
- Rubber screen cover
- 2 Trim-rings (black/silver)
- 4 Screws
- Gasket
- Warranty/Information Card
| Lowrance | Simrad | Garmin GPSmap | Garmin EchoMap | Ray Marine | |
| Does KMC show up as media player? | Yes | Yes | Yes | No | No |
| Power KMC Off from MFD | Yes | Yes | Yes | No | No |
| Power KMC On from MFD | Yes | Yes | Yes | No | No |
| Control Audio Source | Yes | Yes | Yes | No | No |
| Audio Source Names show correctly (ie. DAB, Pandora) | Yes | Yes | No | No | No |
| Volume Control (Zone 1/2/ALL) | Yes | Yes | Yes | No | No |
| Volume Mute | Yes | Yes | Yes | No | No |
| Balance | Yes | Yes | No | No | No |
| Fader | No | No | No | No | No |
| Set EQ (Off,Rock, Pop, Jazz, Custom) | No | No | No | No | No |
| Subwoofer | Yes | Yes | No | No | No |
| Bass | Yes | Yes | No | No | No |
| Middle | Yes | Yes | No | No | No |
| Treble | Yes | Yes | No | No | No |
| Bluetooth scan/pair new device | Yes | Yes | No | No | No |
| Bluetooth show track name | Yes | Yes | Yes | No | No |
| Bluetooth show artist name | Yes | Yes | Yes | No | No |
| Bluetooth show album name | No | No | Yes | No | No |
| Bluetooth Play/Pause, Track FWD/Back | Yes | Yes | Yes | No | No |
| Bluetooth Fast-forward/Rewind | No | No | No | No | No |
| FM Seek | Yes | Yes | Yes | No | No |
| FM Tune | Yes | Yes | Yes | No | No |
| Select FM Favorite | Yes | No | No | No | No |
| Save FM Favorite | Yes | Yes | No | No | No |
| Set FM Tuner Region (USA/EU) | Yes | Yes | No | No | No |
| FM RDS Data shows correctly | No | No | Yes | No | No |
| USB Browse Track List | Yes | Yes | No | No | No |
| USB show track name | Yes | Yes | Yes | No | No |
| USB show artist name | Yes | Yes | Yes | No | No |
| USB show album name | No | No | Yes | No | No |
| USB Track Forward/Back | Yes | Yes | Yes | No | No |
| USB Fast-forward/Rewind | Yes | Yes | No | No | No |
| USB Repeat Feature | Yes | Yes | Yes | No | No |
| USB Shuffle Feature | Yes | Yes | Yes | No | No |
| Pandora Play/Pause, Next Track | Yes | Yes | No | No | No |
| Pandora Fast-forward/Rewind | No | No | No | No | No |
| Pandora Song Info (Track, Artist) | Yes | Yes | No | No | No |
| Pandora Thumbs Up/Down | Yes | Yes | No | No | No |
| Pandora Station List - See and Select Lists | Yes | Yes | No | No | No |
| Zone Control | 2 Zones |
|---|---|
| Amplification | Yes |
| Output Power (W) | 150 |
| Features | AM Tuner FM Tuner Bluetooth Compatible RCA Auxiliary Input USB Input Low Battery Alert Six High Output Channels Video Input Adjustable EQ |
| Input Connection | AUX RCA Bluetooth USB |
| Output Connection | RCA |
| Waterproof Rating | IP66 IP67 |
| Display Type | LCD |
| Display Size (in) | 3.5 |
| What's Included | Headunit Manual Trim Ring Power and speaker lead |
| Height (cm) | 8.89 |
| Width (cm) | 13.97 |
| Depth (cm) | 14.9 |
| Mounting Depth (cm) | 12.1 |
| Brand | Kicker Audio |
| EAN | 713034014317 |
| Box Quantity | 8 |
