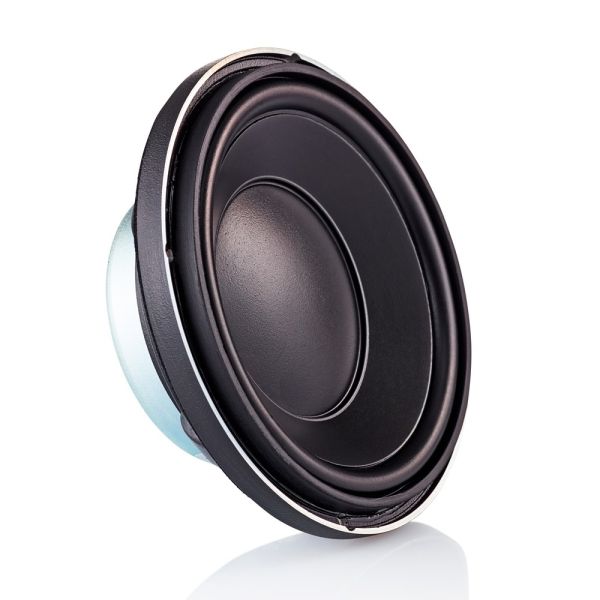

Morel Hybrid 4" (100 mm) Component Mid-Range Woofer Pair
Clearpay is credit. T&Cs & late fees apply clearpay.co.uk/terms.
Embracing Morel’s legendary craftsmanship, engineering, and innovation, the latest Hybrid systems define an ever-evolving concept of high-fidelity speaker design. Now in their fifth generation, the new Hybrid and Hybrid Integra systems give a further refined listening experience, captivating you with the raw emotions of listening to live music. Their subtle balance of resolution, power, and efficiency has been further optimized to exceed expectations regardless of what genre of music you enjoy.
All of the Hybrid MW models incorporate Morel’s core technologies. A 2 ¼” Aluminum Hexatech Extrenal Voice Coil wound on an aluminum former enables stable, efficient and linear piston-like movement which effectively reduces distortion levels.
Spec:
- Impedance: 4 ohm
- Power handling: 100W RMS
- Sensitivity: 89dB
- Frequency response: 50Hz - 4200Hz
- Voice coil diameter: 54mm / 2.1 inch
Full Spec of Hybrid Component Woofers
| MODEL | HYBRID MW4 | HYBRID MW5 | HYBRID MW6 |
|---|---|---|---|
| Nominal Impendance (ohm) 4 | 4 | 4 | 4 |
| Power Handling Wrms | 100 | 120 | 140 |
| Max. Trans. Pwr Handling Wrms | 300 | 500 | 600 |
| Sensitivity (2.83 V/1M) dB | 89 | 90 | 91 |
| Frequency response Hz | 50-4200 | 45 - 3000 | 35 - 3000 |
| Resonant Freq. Fs Hz | 82 | 56 | 45 |
| Voice Coil Diameter mm (inch) | 54 (2.1) | 54 (2.1) | 54 (2.1) |
| Voice Coil Height mm (inch) | 10.50 (0.41) | 10.50 (0.41) | 11 (0.47) |
| Voice Coil Type/Former | Aluminium | Aluminium | Aluminium |
| Voice Coil Wire | Hexatech™ Aluminium | Hexatech™ Aluminium | Hexatech™ Aluminium |
| DC Resistance (ohm) | 3.2 | 3 | 3 |
| Voice Coil Induct. @1 kHz (mH) | 0.21 | 0.21 | 0.22 |
| Magnet System | Hybrid rear vented | Hybrid rear vented | Hybrid rear vented |
| HE-Magnetic Gap Height mm (inch) | 4 (0.16) | 4 (0.16) | 4 (0.16) |
| B-Flux Density (T) | 0.83 | 0.83 | 0.83 |
| BL Product/BXL | 4.16 | 4.2 | 4.2 |
| Max. Linear Ex./Xmax mm (inch) | 7 ± 3.5mm (0.28 ± 0.14) | 7 ± 3.5mm (0.28 ± 0.14) | 7 ± 3.5mm (0.28 ± 0.14) |
| Suspension Compliance CMS - mm/N | 0.57 | 0.78 | 1.1 |
| Electrical Q Factor QES | 0.63 | 0.59 | 0.56 |
| QTS | 0.46 | 0.45 | 0.44 |
| QMS | 1.74 | 1.8 | 2.08 |
| Mech. Resistance RMS- N . S / M | 1.98 | 1.96 | 1.5 |
| Moving Mass MMS - gr/ounce | 6.8 | 9.9 | 11 |
| Equiv. Can Air Load VAS - L (cu.ft3) | 3.17 (0.11) | 8.87 (0.31) | 21 (0.74) |
| Effective Piston Area SD sq.cm (sq.inch) | 64 (9.92) | 90 (13.95) | 119 (18.45) |
| Cone Type | One-piece formed | One-piece formed | One-piece formed |
| Cone Material | DPC | DPC | DPC |
| Unit Diameter mm(inch) | 109 (4.3) | 135 (5.25) | 165 (6.50) |
| Mounting Depth mm (inch) | 28.5 (1.12) | 60 (2.36) | 61 (2.40) |
| Mounting Cutout | 93 (3.6) | 120 (4.72) | 141 (5.55) |
| Net Wight Kg (lb) | 0.53 (1.1716) | 0.60 (1.32) | 0.60 (1.32) |
