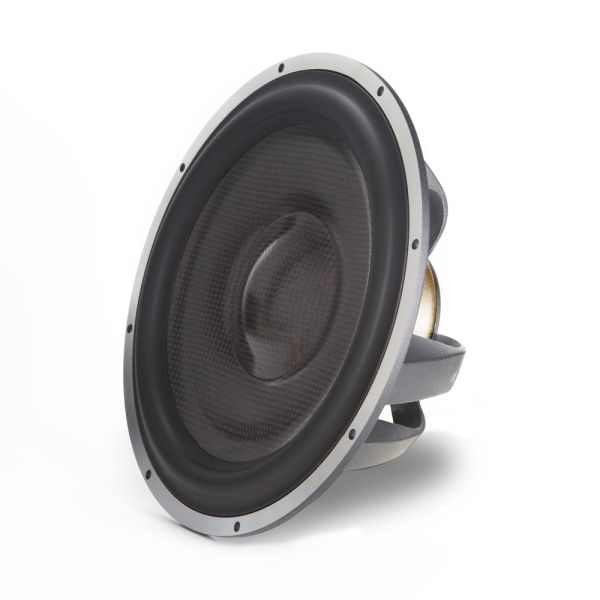

Name: Morel Elate Carbon 9" (230 mm) Component Mid-Range Woofer Pair
Brand: Morel
SKU: MOR ELAT CAR MW9
Price: 1049.50 GBP
Availability: InStock

Not all drivers are created equal, and the visually inspiring Elate Carbon woofers were developed with next-level performance in mind. These new drivers get their Carbon moniker from their triple-layer cones from which they are derived, consisting of two layers of carbon fibre sandwiching a Rohacell foam core. These proprietary cones were developed to give them incredible stiffness, high damping and light weight—the trifecta for cone performance.

Paired with a large 3-inch diameter Hexatech aluminium voice coil, titanium former, and Morel’s EVC motor technology, the Elate Carbon achieves remarkable control and low distortion which translates to highly transparent and bass-rich sound reproduction.

Full Spec of Elate Carbon Woofers

Expand

Model	ELATE CARBON MW5	ELATE CARBON MW6	ELATE CARBON MW9
Nominal Impendance (ohm) 4	4	4	4
Power Handling Wrms	160	180	200
Max. Trans. Pwr Handling Wrms	1000	1000	1000
Sensitivity (2.83 V/1M) dB	85	87	89
Frequency response Hz	40 - 5000	30 - 4000	25 - 3000
Resonant Freq. Fs Hz	64.4	45	44
Voice Coil Diameter mm (inch)	75 (3)	75 (3)	75 (3)
Voice Coil Height mm (inch)	14.50 (0.57)	14.50 (0.57)	14.50 (0.57)
Voice Coil Type/Former	Titanium	Titanium	Titanium
Voice Coil Wire	HexatechTM Aluminium	HexatechTM Aluminium	HexatechTM Aluminium
DC Resistance (ohm)	3.6	3.6	3.6
Voice Coil Induct. @1 kHz (mH)	0.615	0.615	0.615
Magnet System	Double magnet rear vented	Double magnet rear vented	Double magnet rear vented
HE-Magnetic Gap Height mm (inch)	5 (0.20)	5 (0.20)	5 (0.20)
B-Flux Density (T)	0.66	0.75	0.74
BL Product/BXL	5.15	6.51	5.15
Max. Linear Ex./Xmax mm (inch)	±4.75mm (0.18)	±4.75mm (0.18)	±4.75mm (0.18)
Suspension Compliance CMS - mm/N	0.35	0.67	0.36
Electrical Q Factor QES	0.63	0.47	0.61
QTS	0.56	0.43	0.56
QMS	4.15	7.19	6
Mech. Resistance RMS- N . S / M	1.32	1	1.2
Moving Mass MMS - gr/ounce	18 (0.63)	18 (0.63)	30 (1.05)
Equiv. Can Air Load VAS - L (cu.ft3)	4.5 (0.6)	13.3 (0.47)	30.9 (1.1)
Effective Piston Area SD sq.cm (sq.inch)	90 (13.95)	120 (18.6)	219 (33.95)
Cone Type	One-piece formed	One-piece formed	One-piece formed
Cone Material	DPC	DPC	DPC
Unit Diameter mm(inch)	135 (5.25)	165 (6.50)	222 (8.75)
Mounting Depth mm (inch)	60 (2.36)	61 (2.40)	71 (2.80)
Mounting Cutout	120 (4.72)	141 (5.55)	192 (7.56)
Net Wight Kg (lb)	1.05 (2.31)	1.18 (2.60)	1.42 (3.13)

More Information
Speaker Size (in)	9"
Style	Component
Impedance (Ohms)	4
RMS Power (W)	200
Sensitivity (dB @ 1W/1m)	89
Frequency Response (Hz)	25-3000
Mounting Hole Diameter (cm)	19.2
Mounting Depth (cm)	7.1
Single Or Pair	Pair
Grills	Included
Brand	Morel
EAN	12729010592201
Box Quantity	No
