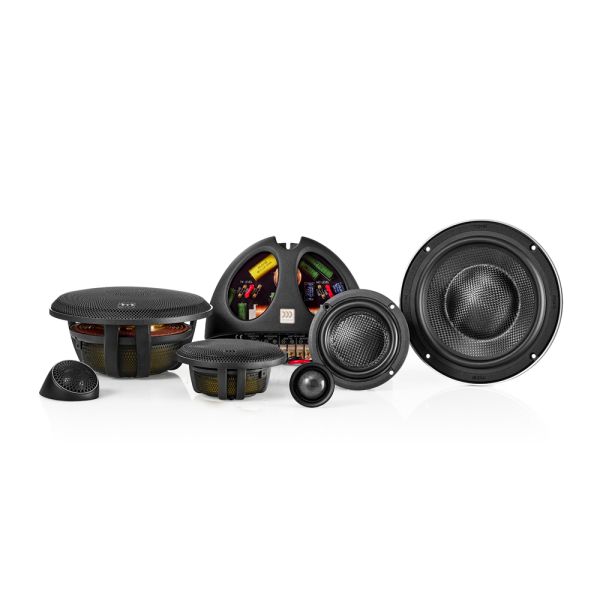

Morel Elate Carbon 6.5" (165 mm) 3-Way Component Speaker Set
Out of Stock
SKU
MOR ELAT CAR 63
Views: 34
£2,899.00 £2,415.83

Clearpay is credit. T&Cs & late fees apply clearpay.co.uk/terms.
Experience ultimate sound quality with the Morel Elate Carbon 6.5 3-Way Component Speaker Set. Equipped with a compact MT450 tweeter for discreet placement and a MM3 3.5 cone midrange for lower frequency control. Enjoy high power handling with ultra-low distortion, thanks to its carbon fibre/Rohacell cones. A speaker set designed to surpass your expectations!
The Elate Carbon shares most of its high-end componentry with its Pro siblings, yet takes a slightly more sensible approach. These 2-way and 3-way systems were designed for those who want the ultimate performance but are looking for a discreet tweeter. The compact design of the MT450 tweeter allows users the option to place the speaker in most factory locations, or into space-limited areas using the supplied mounts. It may be small in size, but the MT450’s Acuflex coated silk dome, open cavity design and dual neodymium magnet motor give it amazing detail and a silky-smooth, flat frequency response.
All Elate Carbon 3-way systems receive the all new MM3 3.5″ cone midrange. This small midrange uses the best of Morel’s technology, including EVC motor, high power 2.1” diameter voice coil, and highly damped carbon fibre/Rohacell cone, allowing it to play lower in frequency and with greater control than most 4.5” speakers. It also handles some serious power. These attributes drastically improve system performance while enabling them to fit in most factory midrange locations.
The Elate Carbon would not be complete without exercising their power. Whether using a 5.25”, 6.5” or 9-inch system, each of the woofers feature Klipple optimized EVC motors with large 3-inch diameter voice coils and carbon fibre/Rohacell sandwich cones for ultra-low distortion and high power handling levels.
The vast feature set and design of the new Elate Carbon allow them to blow away your every expectation.
Elate Carbon 3-Way Speaker Spec
| MODEL | SIZE & CONFIGURATION | POWER HANDLING (WRMS) / PEAK POWER (W) | SENSITIVITY(2.83V/1M) (DB) | FREQUENCY RESPONSE (HZ) |
|---|---|---|---|---|
| Elate Carbon 53 | 5¼” 3-way | 160 / 1000 | 85 | 40-25000 |
| Elate Carbon 53A | 5¼” 3-way Active | 160 / 1000 | 85 | 40-25000 |
| Elate Carbon 63 | 6½" 3-way | 180 / 1000 | 87 | 30-25000 |
| Elate Carbon 63A | 6½" 3-way Active | 180 / 1000 | 87 | 30-25000 |
| Elate Carbon 93 | 8¾" 3-way | 200 / 1000 | 89 | 25-25000 |
| Elate Carbon 93A | 8¾" 3-way Active | 200 / 1000 | 89 | 25-25000 |
Elate Carbon 6.5" Speaker Spec
| Model | ELATE CARBON MW6 |
|---|---|
| Nominal Impendance (ohm) 4 | 4 |
| Power Handling Wrms | 180 |
| Max. Trans. Pwr Handling Wrms | 1000 |
| Sensitivity (2.83 V/1M) dB | 87 |
| Frequency response Hz | 30 - 4000 |
| Resonant Freq. Fs Hz | 45 |
| Voice Coil Diameter mm (inch) | 75 (3) |
| Voice Coil Height mm (inch) | 14.50 (0.57) |
| Voice Coil Type/Former | Titanium |
| Voice Coil Wire | HexatechTM Aluminium |
| DC Resistance (ohm) | 3.6 |
| Voice Coil Induct. @1 kHz (mH) | 0.615 |
| Magnet System | Double magnet rear vented |
| HE-Magnetic Gap Height mm (inch) | 5 (0.20) |
| B-Flux Density (T) | 0.75 |
| BL Product/BXL | 6.51 |
| Max. Linear Ex./Xmax mm (inch) | ±4.75mm (0.18) |
| Suspension Compliance CMS - mm/N | 0.67 |
| Electrical Q Factor QES | 0.47 |
| QTS | 0.43 |
| QMS | 7.19 |
| Mech. Resistance RMS- N . S / M | 1 |
| Moving Mass MMS - gr/ounce | 18 (0.63) |
| Equiv. Can Air Load VAS - L (cu.ft3) | 13.3 (0.47) |
| Effective Piston Area SD sq.cm (sq.inch) | 120 (18.6) |
| Cone Type | One-piece formed |
| Cone Material | DPC |
| Unit Diameter mm(inch) | 165 (6.50) |
| Mounting Depth mm (inch) | 61 (2.40) |
| Mounting Cutout | 141 (5.55) |
| Net Wight Kg (lb) | 1.18 (2.60) |
| Speaker Size (in) | 6.5" |
|---|---|
| Style | Component |
| RMS Power (W) | 180 |
| Sensitivity (dB @ 1W/1m) | 87 |
| Frequency Response (Hz) | 30-25k |
| Mounting Hole Diameter (cm) | 14.1 |
| Mounting Depth (cm) | 6.1 |
| Single Or Pair | Pair |
| Grills | Included |
| Brand | Morel |
| EAN | 12729010592225 |
| Box Quantity | No |
