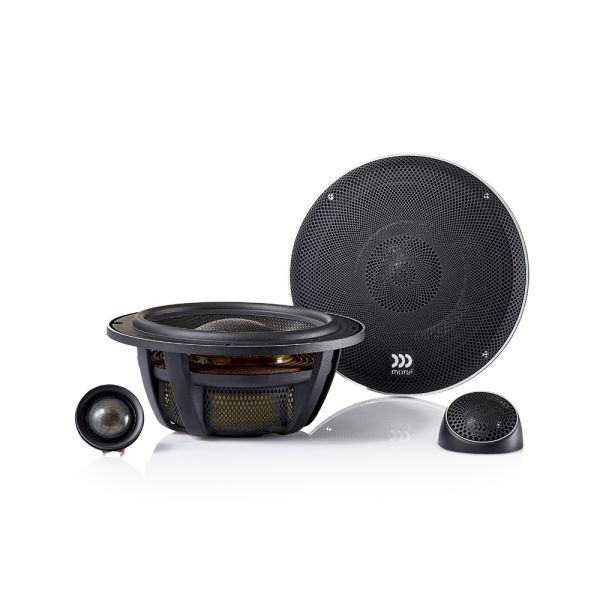

Morel Elate Carbon 6.5" (165 mm) 2-Way Component Speaker Set - Active
[1] In stock
SKU
MOR ELAT CAR 62A
Views: 37
£1,799.00 £1,499.17
Clearpay is credit. T&Cs & late fees apply clearpay.co.uk/terms.
Experience sonic excellence with the Morel Elate Carbon 6.5 2-Way Component Speaker Set. Compact yet powerful, it offers ultimate performance with a discreet tweeter and optimized EVC motors in the woofers for low distortion. The silk dome and carbon fibre cone enhance sound clarity, ensuring a high-quality audio experience.
Fast Next-Day Delivery
5 Star Customer Service
Hassle-Free ReturnsThe Elate Carbon shares most of its high-end componentry with its Pro siblings, yet takes a slightly more sensible approach. These 2-way systems were designed for those who want the ultimate performance but are looking for a discreet tweeter. The compact design of the MT450 tweeter allows users the option to place the speaker in most factory locations, or into space-limited areas using the supplied mounts. It may be small in size, but the MT450’s Acuflex coated silk dome, open cavity design and dual neodymium magnet motor give it amazing detail and a silky-smooth, flat frequency response.
The Elate Carbon would not be complete without exercising their power. Whether using a 5.25”, 6.5” or 9-inch system, each of the woofers feature Klipple optimized EVC motors with large 3-inch diameter voice coils and carbon fibre/Rohacell sandwich cones for ultra-low distortion and high power handling levels.
The vast feature set and design of the new Elate Carbon allow them to blow away your every expectation.
Elate Carbon 2-Way Speaker Spec
| MODEL | SIZE & CONFIGURATION | POWER HANDLING (WRMS) / PEAK POWER (W) | SENSITIVITY (DB) | FREQUENCY RESPONSE (HZ) |
|---|---|---|---|---|
| Elate Carbon 52 | 5¼” 2-way | 160 / 1000 | 85 | 40-25000 |
| Elate Carbon 52A | 5¼” 2-way Active | 160 / 1000 | 85 | 40-25000 |
| Elate Carbon 62 | 6½" 2-way | 180 / 1000 | 87 | 30-25000 |
| Elate Carbon 62A | 6½" 2-way Active | 180 / 1000 | 87 | 30-25000 |
Elate Carbon 6.5" Speaker Spec
| Model | ELATE CARBON MW6 |
|---|---|
| Nominal Impendance (ohm) 4 | 4 |
| Power Handling Wrms | 180 |
| Max. Trans. Pwr Handling Wrms | 1000 |
| Sensitivity (2.83 V/1M) dB | 87 |
| Frequency response Hz | 30 - 4000 |
| Resonant Freq. Fs Hz | 45 |
| Voice Coil Diameter mm (inch) | 75 (3) |
| Voice Coil Height mm (inch) | 14.50 (0.57) |
| Voice Coil Type/Former | Titanium |
| Voice Coil Wire | HexatechTM Aluminium |
| DC Resistance (ohm) | 3.6 |
| Voice Coil Induct. @1 kHz (mH) | 0.615 |
| Magnet System | Double magnet rear vented |
| HE-Magnetic Gap Height mm (inch) | 5 (0.20) |
| B-Flux Density (T) | 0.75 |
| BL Product/BXL | 6.51 |
| Max. Linear Ex./Xmax mm (inch) | ±4.75mm (0.18) |
| Suspension Compliance CMS - mm/N | 0.67 |
| Electrical Q Factor QES | 0.47 |
| QTS | 0.43 |
| QMS | 7.19 |
| Mech. Resistance RMS- N . S / M | 1 |
| Moving Mass MMS - gr/ounce | 18 (0.63) |
| Equiv. Can Air Load VAS - L (cu.ft3) | 13.3 (0.47) |
| Effective Piston Area SD sq.cm (sq.inch) | 120 (18.6) |
| Cone Type | One-piece formed |
| Cone Material | DPC |
| Unit Diameter mm(inch) | 165 (6.50) |
| Mounting Depth mm (inch) | 61 (2.40) |
| Mounting Cutout | 141 (5.55) |
| Net Wight Kg (lb) | 1.18 (2.60) |
| Speaker Size (in) | 6.5" |
|---|---|
| Style | Component |
| RMS Power (W) | 180 |
| Sensitivity (dB @ 1W/1m) | 87 |
| Frequency Response (Hz) | 30-25k |
| Mounting Hole Diameter (cm) | 14.1 |
| Mounting Depth (cm) | 6.1 |
| Single Or Pair | Pair |
| Grills | Included |
| Brand | Morel |
| EAN | 14729010592224 |
| Box Quantity | No |
